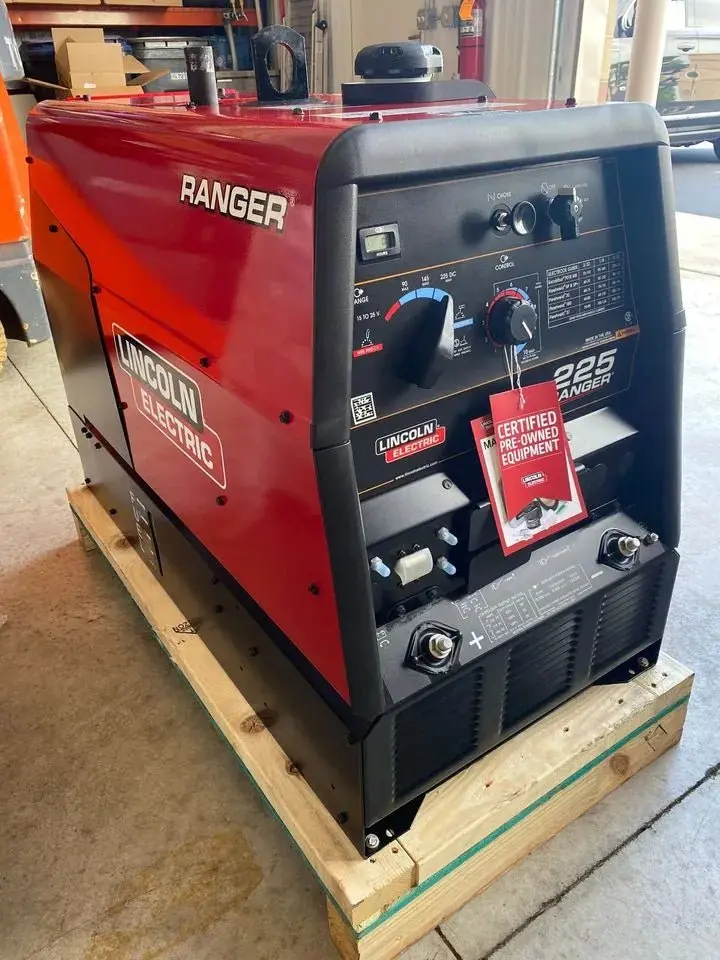

Lincoln Ranger 225 Engine-Driven Welder – Low-Hour Factory Demo Unit

Description

The Ranger 225 features a totally enclosed case design that fully protects the engine while limiting operational noise. With three service access doors, maintenance is simplified while the enclosure maintains a low noise level of just 76.4 dBA at 23 ft. (7 m) and 100.7 dB sound power (Lwa) at rated output. This thoughtful design makes the Ranger 225 suitable for work in noise-sensitive environments while ensuring the engine remains protected from environmental contaminants and physical damage. The unit delivers smooth DC welding output that accommodates a broad range of stick electrode types, providing the versatility needed for diverse welding applications. With optional equipment, the Ranger 225 is also capable of MIG, flux-cored, and TIG welding, making it a truly multi-process solution for contractors, maintenance crews, farmers, and ranchers who need flexibility in their welding operations.

Beyond its welding capabilities, the Ranger 225 serves as a powerful portable generator with 10,500 watts peak single-phase AC generator power and 9,000 watts continuous power. This substantial output allows operators to run a variety of equipment including lights, grinders, power tools, plasma cutters, or inverter welders, eliminating the need for separate power sources on the job site. Powered by a robust 23 HP Kohler gasoline engine featuring a 2 cylinder, 4 cycle overhead valve air-cooled design, the Ranger 225 delivers reliable performance in demanding conditions. The engine includes an oil drain extension for easy maintenance and a generous 12-gallon fuel tank that supports extended run times with impressive fuel efficiency – consuming only 1.5 gallons per hour at 210 amps DC, 25V, 100% duty cycle. Visual fuel level gauges on both sides of the unit provide convenient monitoring from any angle. Built for rugged reliability, both the welding and AC generator outputs are rated for operation at 104°F (40°C), ensuring dependable performance even in extreme environmental conditions. With its combination of versatile welding capabilities, substantial generator power, and durable construction, the Ranger 225 represents an excellent value for professionals who require a reliable all-in-one power solution for remote locations and job sites without readily available power.

Key Features

• Totally Enclosed Case with three service access doors and low noise operation
• Versatile DC Welding for a broad range of stick electrode types
• 10,500 Watts Peak Single-Phase AC Generator Power with 9,000 watts continuous
• 23 HP Kohler Gasoline Engine with 12 gallon tank for extended run times
• Rugged Reliability with outputs rated at 104°F (40°C)

Specifications

Product Weights & Dimensions

Dimensions (H x W x D)	30 in x 21.5 in x 42.3 in (762 mm x 546 mm x 1073 mm)
Net Weight	514 lbs (233 kg)

General Specification

Machines Processes

Stick (SMAW) TIG (GTAW) MIG (GMAW) Flux-Cored Self-Shielded (FCAW-S) Flux-Cored Gas-Shielded (FCAW-G)

Machine Technologies & Connections

Output Range by Mode

CC-Stick: 50 – 225 A Scratch Start TIG: 50 – 225 A CV-Wire: 15 – 25 V

Engine Driven Welders

Single Phase Auxiliary Output	9,000 Watts Continuous, 120/240V
Auxiliary Output Frequency	60 Hz
Receptacle Types	NEMA 5-20R NEMA 14-50R
Engine Brand & Model	Kohler OHV Command CH730
Engine Description	2 Cylinder Air-Cooled Gasoline Engine
Engine Horsepower	23 HP
High Idle Operating Speed @ Rated Output	3600
Fuel Tank Size (US gal.)	12
Fuel Tank Size (L)	45.4
Oil Capacity (qts.)	2.0
Oil Capacity (L)	1.9

Application

Typical Application

Construction General Fabrication Maintenance & Repair

Warranty

Warranty

3 Years Parts and Labor – Engine warranted separately by engine manufacturer
